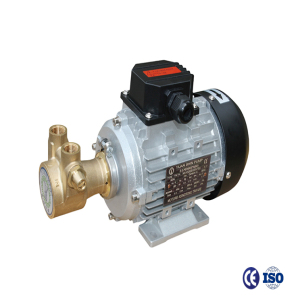

YS-11 Series Pump

YS-11 Series Pump
Non-standard customization

High pressure vane pumps

Suitable for laser equipment cooling, plasma cutting machines, X-ray and medical laser cooling systems, laboratory equipment cooling circulation, high-pressure cleaning equipment, reverse osmosis systems, coffee machines, on-demand machines, park misting, etc.

Characteristic

The vane pump is composed of a plenum chamber, vane, rotor, pump body and other spare parts. The material of the pump body s stainless steel or brass; The motor can be made of single phase, three phase, explosion proof or frequency conversion; The advantages of the pump are self-priming, high pressure with small capacity, small volume, low noisy and fine appearance.

CIRCULATION MEDIUM

Liquids such as water, ethylene glycol, methanol, heat transfer oil, alcohol, etc., that do not contain particles or fibres.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +90℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 20bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

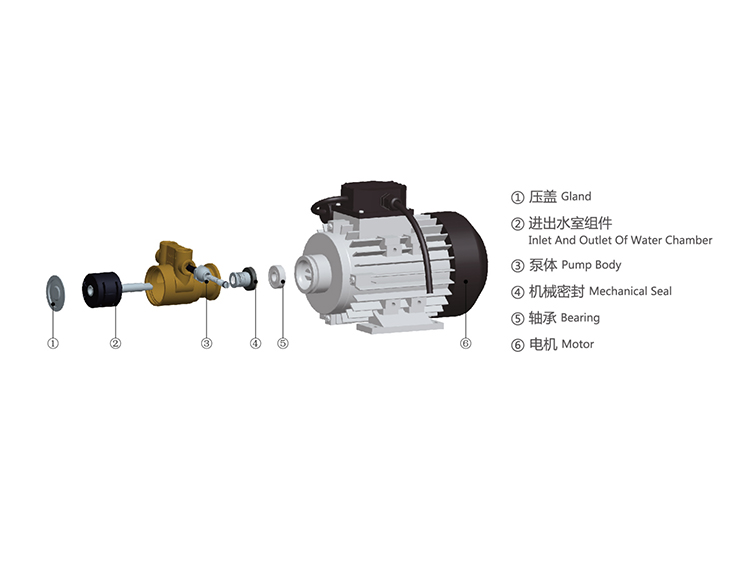

YS-11 Series high pressure Vane pump consists of a booster chamber, blades, rotor, pump body, and other components.When the rotor rotates, the blades are subjected to centrifugal force,and the tip is tightly attached to the inner surface of the stator.The working volume formed by the two blades and the inner surfaces of the rotor and stator,first absorbs water from small to large, and then discharges the medium from large to small.When the blades rotate once, they complete one cycle of water absorption and drainage.The material of the pump body is brass;The motor can be made of single phase, three phase,explosion proof or frequency conversion;The advantages of the pump are self-priming, high pressure with small capacity,small volume, low noisy and fine appearance.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight
	Inlet	Outlet	Power	(Hp)	Voltage	Frequency	Speed	Max/Rated Head (m)	Max Capacity	(kg)
			(KW)		(V)	(Hz)	(r/min)		(l/min)
YS-11A(S)-100	NPT3/8"	NPT3/8"	0.25	0.33	3Ø-380/1Ø-220	50	1450	200/120	100	7
YS-11B(S)-100
YS-11A(S)-150	NPT3/8"	NPT3/8"	0.37	0.5	3Ø-380/1Ø-220	50	1450	200/120	150	7.5
YS-11B(S)-150
YS-11A(S)-200	NPT3/8"	NPT3/8"	0.37	0.5	3Ø-380/1Ø-220	50	1450	200/120	200	7.5
YS-11B(S)-200
YS-11A(S)-300	NPT3/8"	NPT3/8"	0.37	0.5	3Ø-380/1Ø-220	50	1450	200/120	300	7.5
YS-11B(S)-300
YS-11A(S)-400	NPT3/8"	NPT3/8"	0.37	0.5	3Ø-380/1Ø-220	50	1450	200/120	400	10
YS-11B(S)-400
YS-11A(S)-800	NPT1/2"	NPT1/2"	0.55	0.7	3Ø-380/1Ø-220	50	1450	160/120	800	10.5
YS-11B(S)-800
YS-11A(S)-1000	NPT1/2"	NPT1/2"	0.55	0.7	3Ø-380/1Ø-220	50	1450	160/120	1000	10.5
YS-11B(S)-1000

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "S" means single phase.

wz1： High pressure vane pumps

wz2： Non-standard customization
