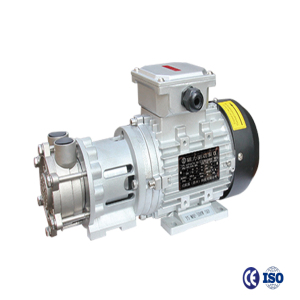

MAP-TH Series Pump

MAP-TH Series Pump
Non-standard customization

Stainless steel Magnetic Drive Regenerative Turbine Pumps

This magnetic drive centrifugal pump delivers energy-efficient, leak-free chemical fluid circulation for pharmaceutical, electroplating and wastewater industries. Contact-free magnetic torque transmission avoids shaft seal failure. Compact structure fits limited space, supporting long-term safe delivery of flammable and high-purity chemical media.

CIRCULATION MEDIUM

Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, glacier refrigerant, gasoline, dye, chemical solution, liquid nitrogen, electronic fluoride liquid, freon and other liquids without particles and fibers.

WORKING CONDITION

Medium Temperature: -196℃ ~ +400℃

Ambient Temperature: -50℃ ~ +70℃

Maximum Elevation: 5000m

Maximum Working Pressure: 40bar

DETAIL

Download

Detailed Description

CMP Series Pump

It is suitable for high-temperature mold temperature control, high and low temperature test instruments, semiconductor precision temperature control, chemical equipment, template temperature control, ultrasonic cleaning equipment, high-end printing and dyeing equipment, negative pressure distillation, metering and conveying skid-mounting, TCU temperature control system, hydrogen production machine, ozone generator, etc.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max/Rated Head(m)	Max Capacity (l/min)
MAP-500TH	G1/2	G1/2	0.5	0.7	3Ø-380	50	2760	65/50	30	10
MAP-500TH-S					1Ø-220
MAP-750TH	G3/4	G3/4	0.75	1	3Ø-380	50	2760	60/48	45	14
MAP-750TH-S					1Ø-220
MAP-1100TH	G3/4	G3/4	1.1	1.5	3Ø-380	50	2760	80/56	50	19
MAP-1100TH-S					1Ø-220
MAP-1500TH	G3/4	G3/4	1.5	2	3Ø-380	50	2760	100/82	54	24
MAP-1500TH-S					1Ø-220

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "S" means single phase.
