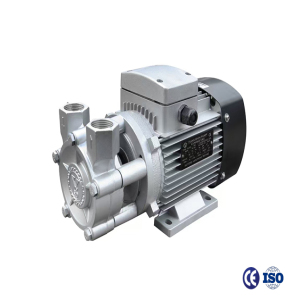

YS Series Pump

YS Series Pump
Non-standard customization

Hot water/hot oil vortex pumps

Suitable for mould temperature control, pharmaceutical sterilization, reactor jacket temperature control, steam boiler, welding machine cooling, test instruments, boiler make-up water, hot water furnace, food equipment and so on.

CIRCULATION MEDIUM

Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

The YS Series Vortex Pumps (Regenerative Turbine Pumps/Peripheral Turbine Pumps) are highly compact high-pressure pumps designed to transfer circulating media consisting of liquids free of particles or fibers (water, thermal oil). Featuring space-saving installation, refined appearance, high strength, precision fit, high-temperature resistance, and balanced operation. Widely used in small precision mold temperature controllers, medical sterilization, small thermal oil heaters, boiler makeup water systems, laboratory equipment, and constant-temperature oil baths.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max/Rated Head(m)	Max Flow Rate (l/min)
YS-17A-SS	G1/2"	G1/2"	0.55	0.7	3Ø-380	50	2760	40/25	25	8
YS-17A-SS-S					1Ø-220			45/25	30	11
YS-20A-SS	G3/4"	G3/4"	0.75	1	3Ø-380	50	2760	60/40	60	12
YS-20A-SS-S					1Ø-220
YS-30A-SS	G1"	G1"	1.5	2	3Ø-380	50	2760	65/35	90	16.8

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "SS" means stainless steel.

The letter "S" means single phase.
