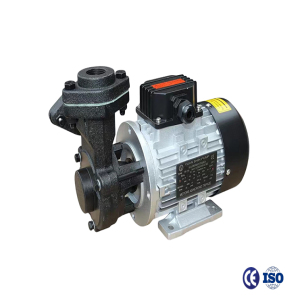

YS-15 Series Pump

YS-15 Series Pump
Non-standard customization

Hot water/hot oil gear vortex pumps

Suitable for heat exchange systems, mold temperature control, ultrasonic cleaning, testing instruments, machine tool cooling, barrel temperature control, etc.

CIRCULATION MEDIUM

Liquids that do not contain particles or fibers, such as water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, etc.

WORKING CONDITION

Thermal Conductivity Water: +5℃ ~ +160℃

Thermal Conductivity Oil: +5℃ ~ +200℃

Glycol/Silicone Oil: -30℃ ~ +180℃

Working Temperature: -5℃ ~ +40℃

Maximum Elevation: 1000m

Maximum Working Pressure: 10bar

DETAIL

Download

Detailed Description

PRODUCT INTRODUCTION

YS-15 Series Circulating Vortex Pumps (Regenerative Turbine Pumps/Peripheral Turbine Pumps) transfer circulating media consisting of liquids free of particles or fibers (water, ethylene glycol, thermal oil, etc.). Featuring high-temperature resistance, simple structure, stable performance, and broad applicability, these pumps are widely used in small precision mold temperature controllers, medical sterilization equipment, compact thermal oil heaters, boiler makeup water systems, laboratory apparatus, and constant-temperature oil baths.

TECHNICAL PARAMETER

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (KW)	(Hp)	Voltage (V)	Frequency (Hz)	Speed (r/min)	Max/Rated Head(m)	Max Flow Rate (l/min)
YS-15	DN20	DN20	0.25	0.33	3Ø-380	50	2760	15/12	30	9
YS-15S					1Ø-220
YS-15A	DN20	DN20	0.37	0.5	3Ø-380	50	2760	28/22	42	9
YS-15A-S					1Ø-220
YS-15B	DN20	DN20	0.75	1	3Ø-380	50	2760	38/28	56	11
YS-15B-S					1Ø-220
YS-15C	DN25	DN25	1.5	2	3Ø-380	50	2760	60/30	110	18.5

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.character'serror is about 10%.The pump characters change according to the difference of the liquid mediums' proportion and density.

The letter "S" means single phase.
